Patch LT

The Flock Audio Patch is a digitally controlled analog patchbay, designed
to achieve unprecendented flexibility and recall capabilities in equipment
chain routings. With this combination of hardware and software, patch
cables are a thing of the past!

No AD / DA converters involved, only the paths of the analog signals are
altered digitally. Patch gives you the best of both worlds – pure analog
audio combined with full digital control.

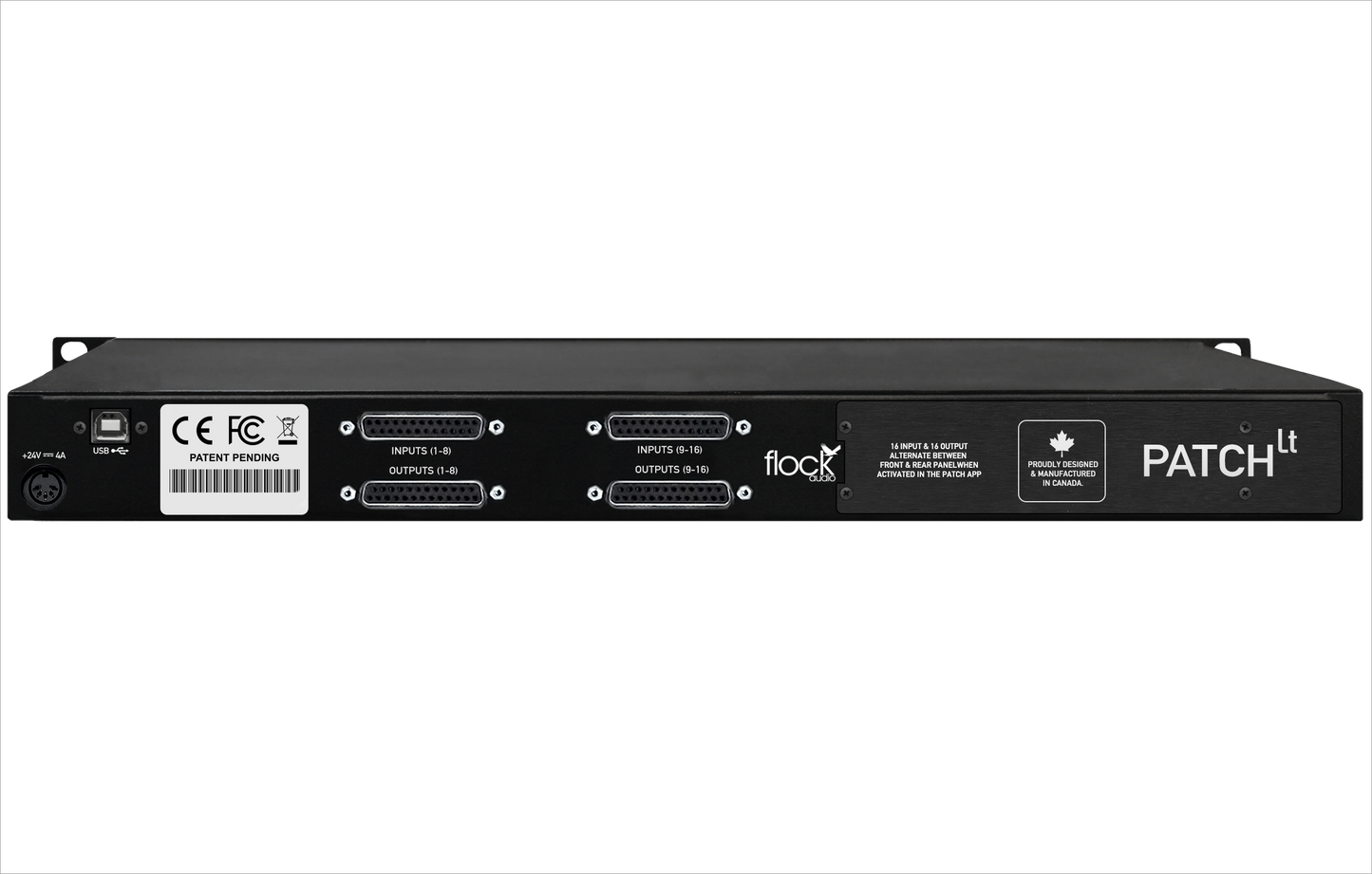

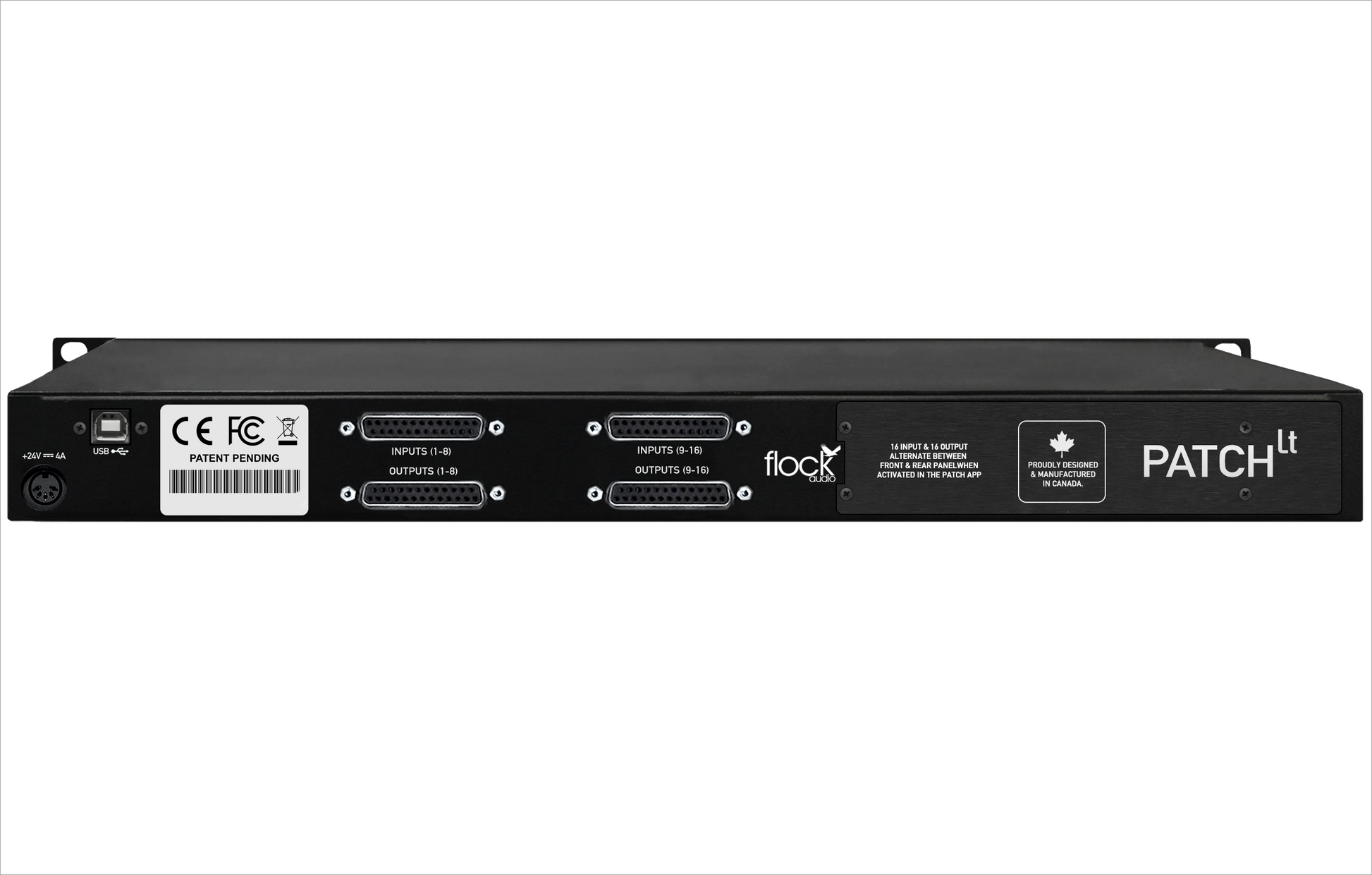

The hardware part is a 32-point analog patchbay in a sturdy 1RU chassis
with rear-panel DB-25 connectors for the I/O and a USB to-host connector

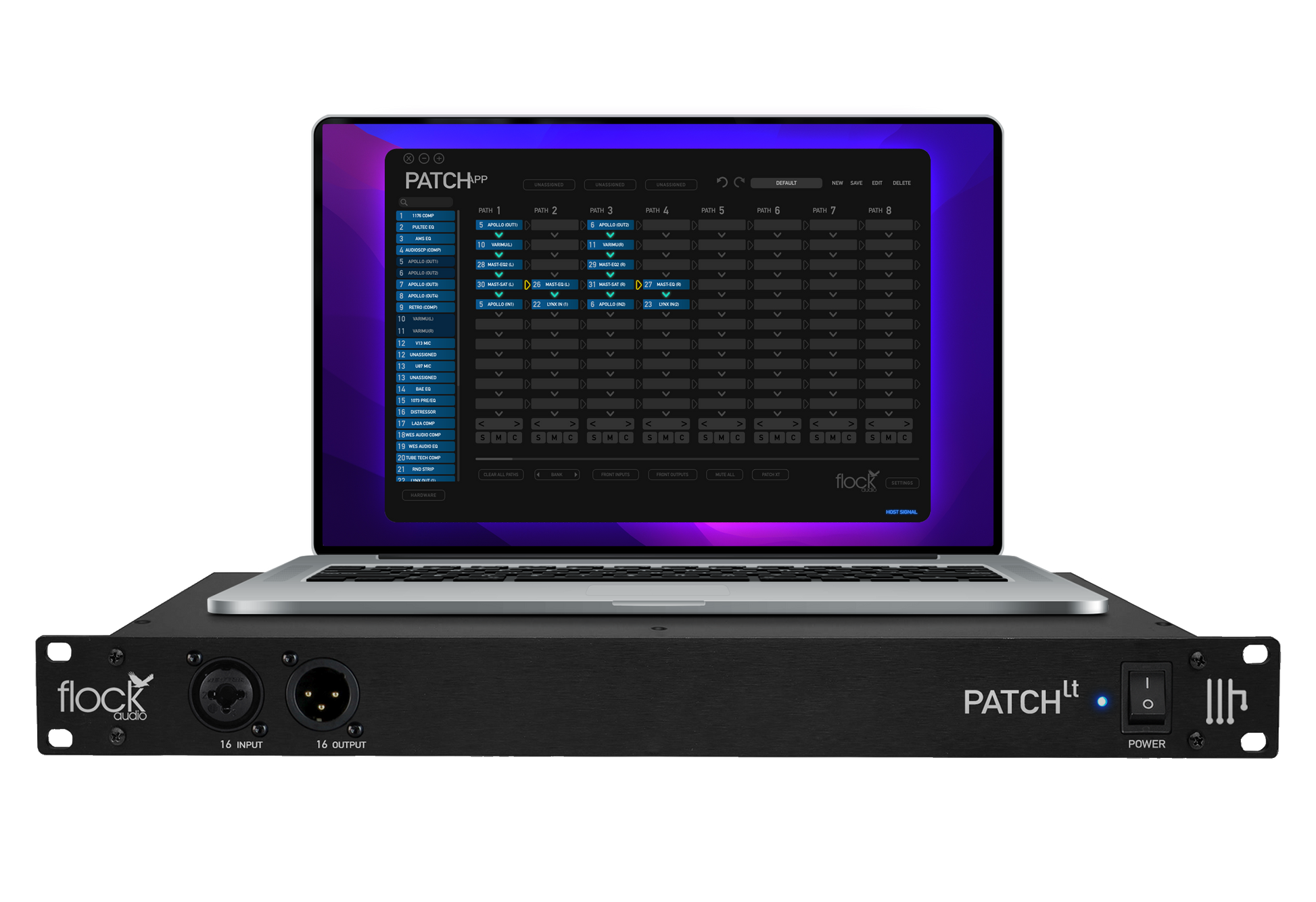

providing communication with the software part, the easy-to-use Patch
App (Mac/Win). The Patch App provides the user unlimited routing storage
and instant recalls.

Features
• 32 Point Connections (16 Inputs / 16 Outputs)
• DB-25/D-SUB Tascam Standard Pinout Format Connectors
• 16 Independent Channels of 48V Phantom Power

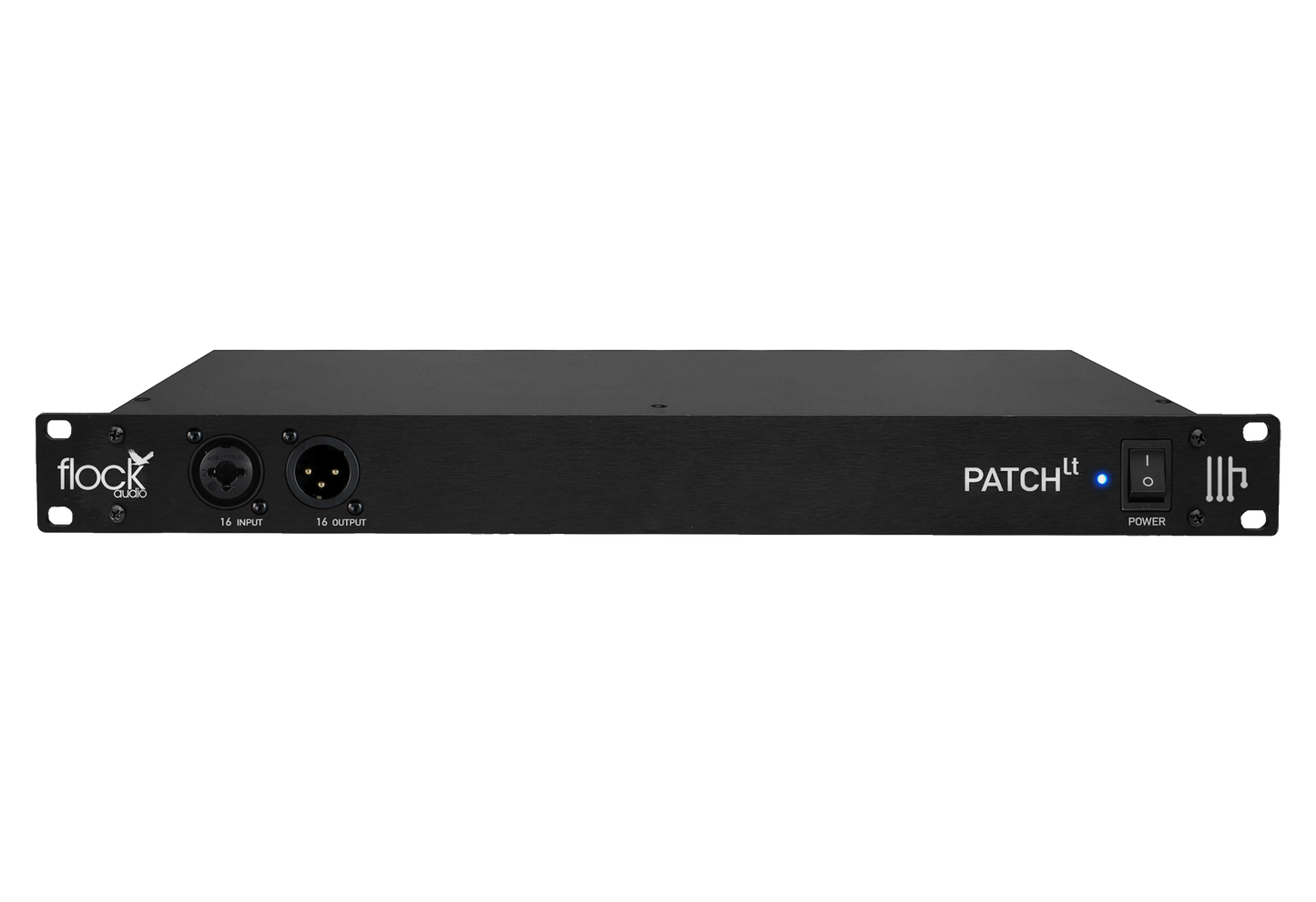

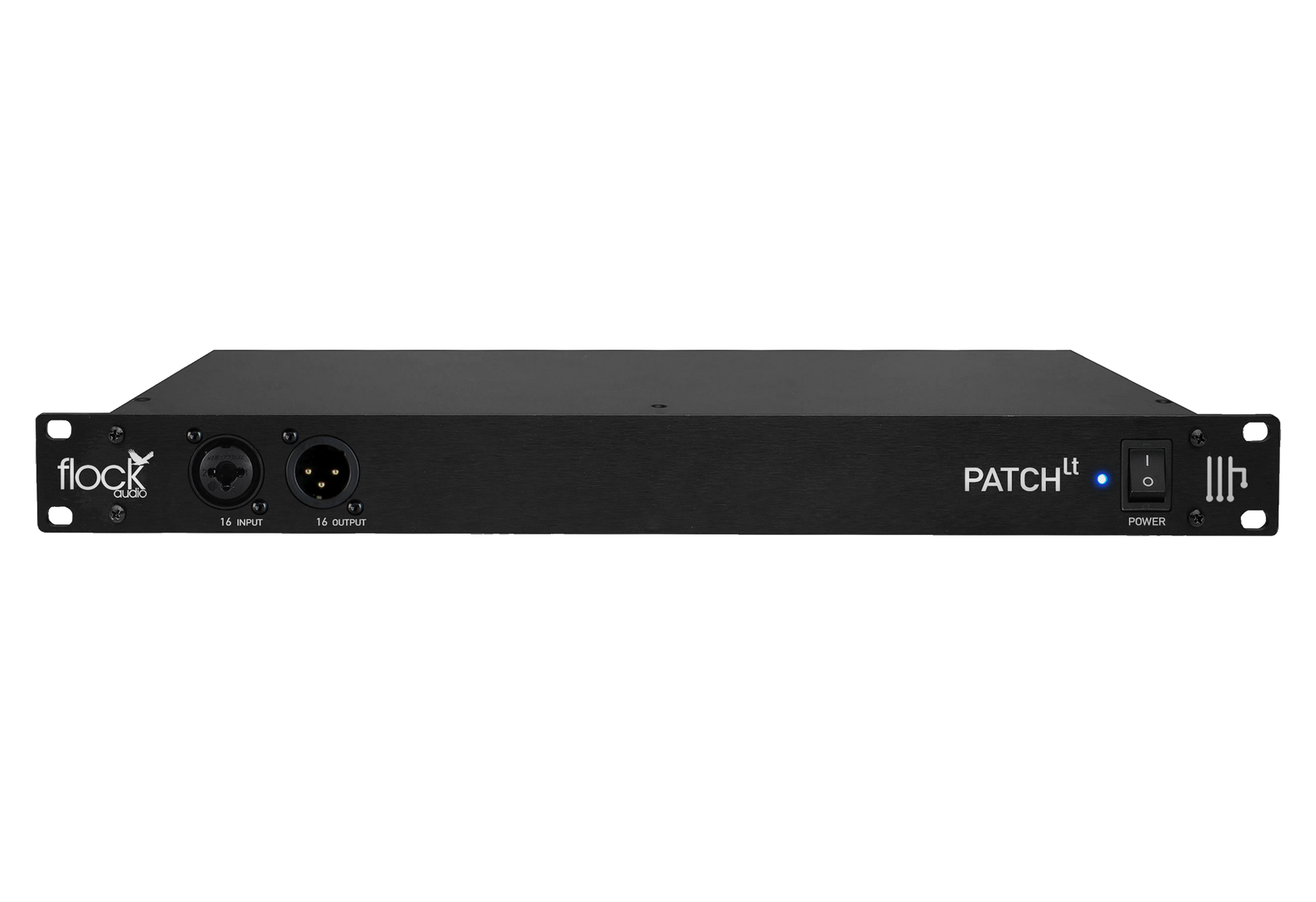

• Front Panel - 1 Combo TRS/XLR Input & 1 XLR Output
• PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon)
• Create, Store & Recall Routings in Seconds
• Create Complex Multing Combinations w/ No Impedance Issues
• No AD/DA Conversion, 100% Transparent Analog Signal Path
• Patented Flock Audio Matrix Technology (Same as PATCH)
• Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)

Videos
https://www.youtube.com/watch?v=Y-dg_fNn6DA
https://www.youtube.com/watch?v=s0PbNdqBZBQ

Tech Specs
Unit dimensions: 1RU, 4,45cm (H) x 48,3cm (L) x 20,3cm (D)
Box dimensions & shipping weight:
13cm (H) x 69cm (L) x 31cm (D),
5.5 kg

• External 5Pin 24VDC power supply, IEC cable included
• USB 2.0 (USB-A to USB-B), cable included
