Patch

The Flock Audio Patch is a digitally controlled analog patchbay, designed
to achieve unprecendented flexibility and recall capabilities in equipment
chain routings. With this combination of hardware and software, patch
cables are a thing of the past!

No AD / DA converters involved, only the paths of the analog signals are
altered digitally. Patch gives you the best of both worlds – pure analog
audio combined with full digital control.

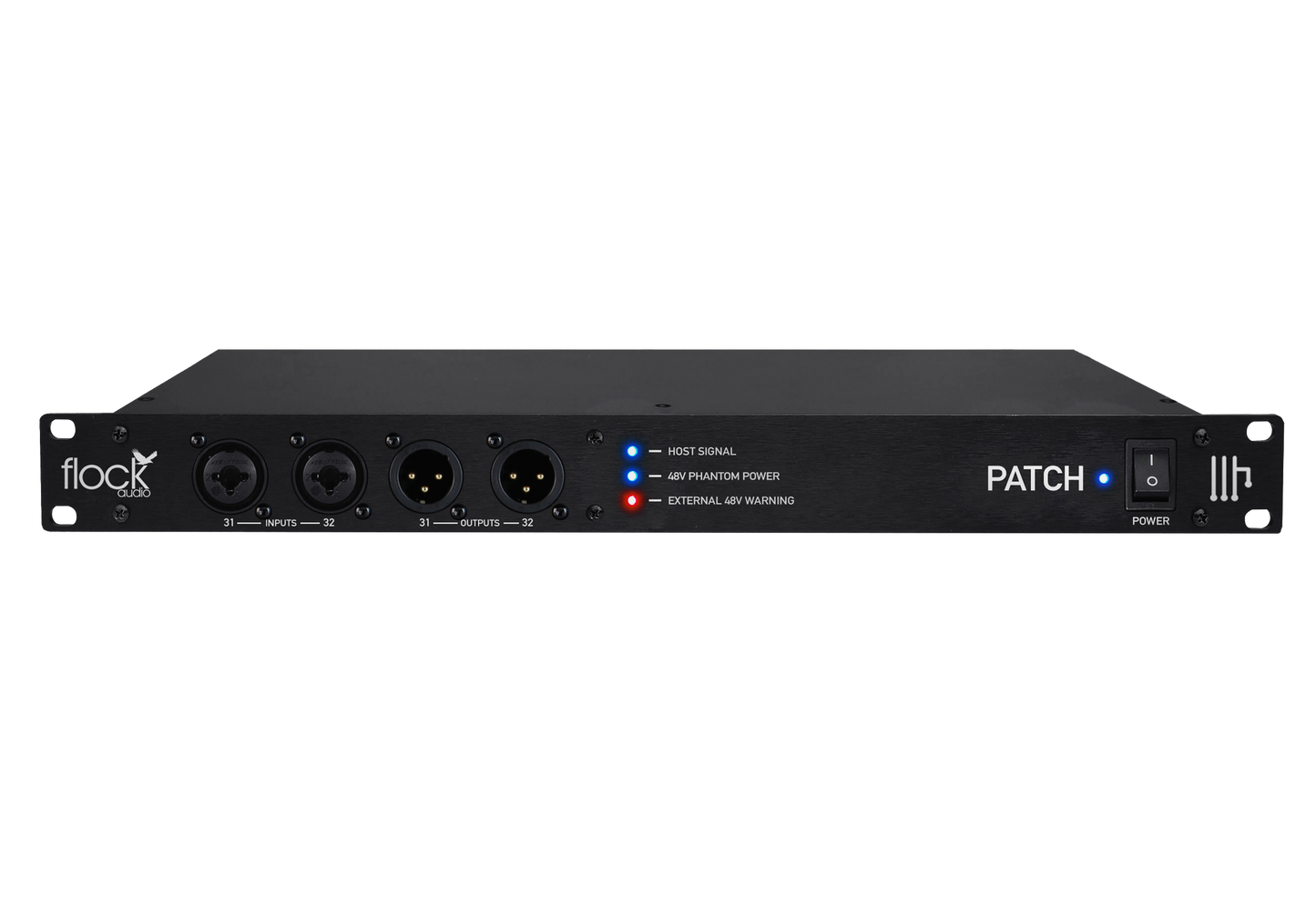

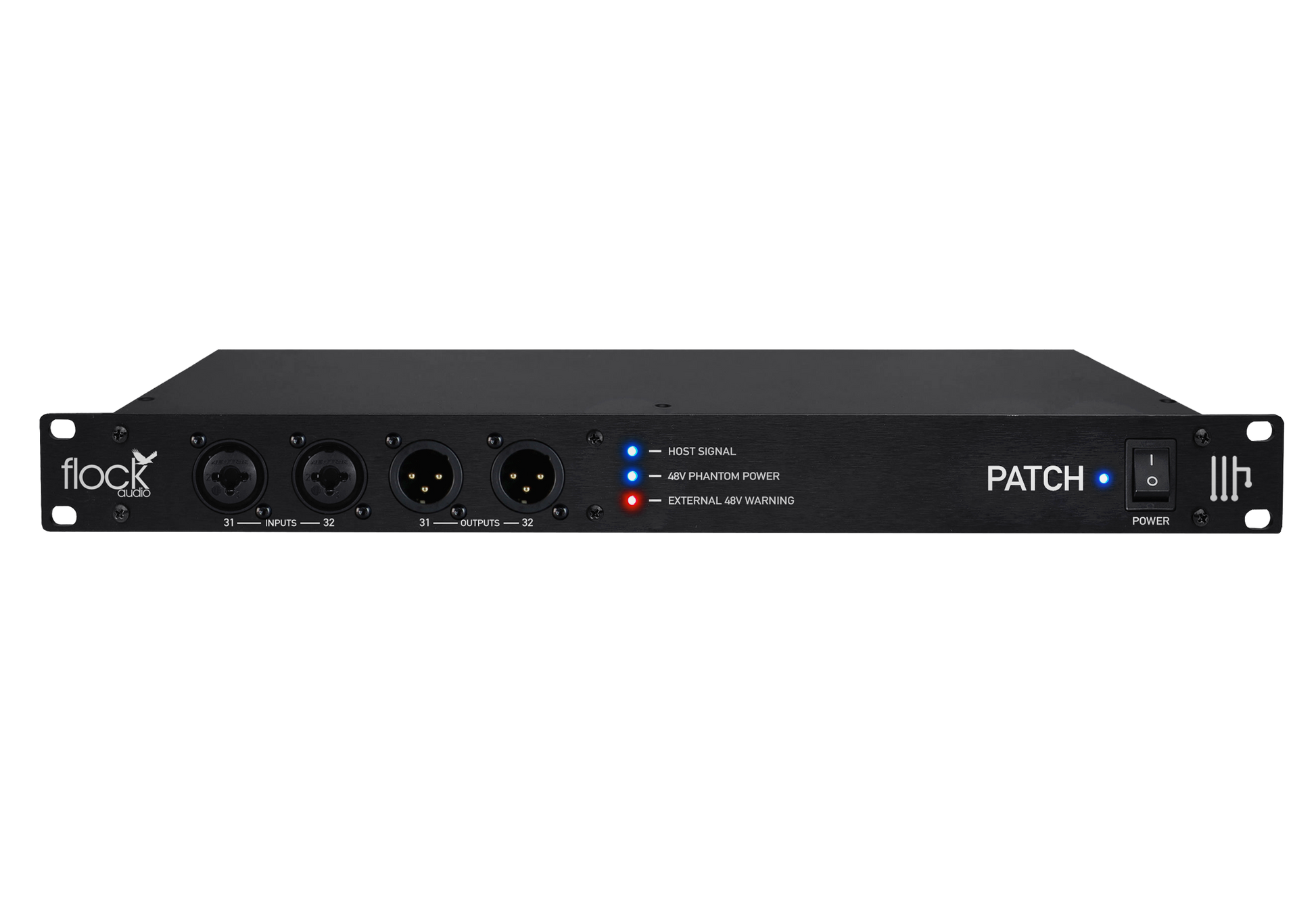

The hardware part is a 64-point analog patchbay in a sturdy 1RU chassis

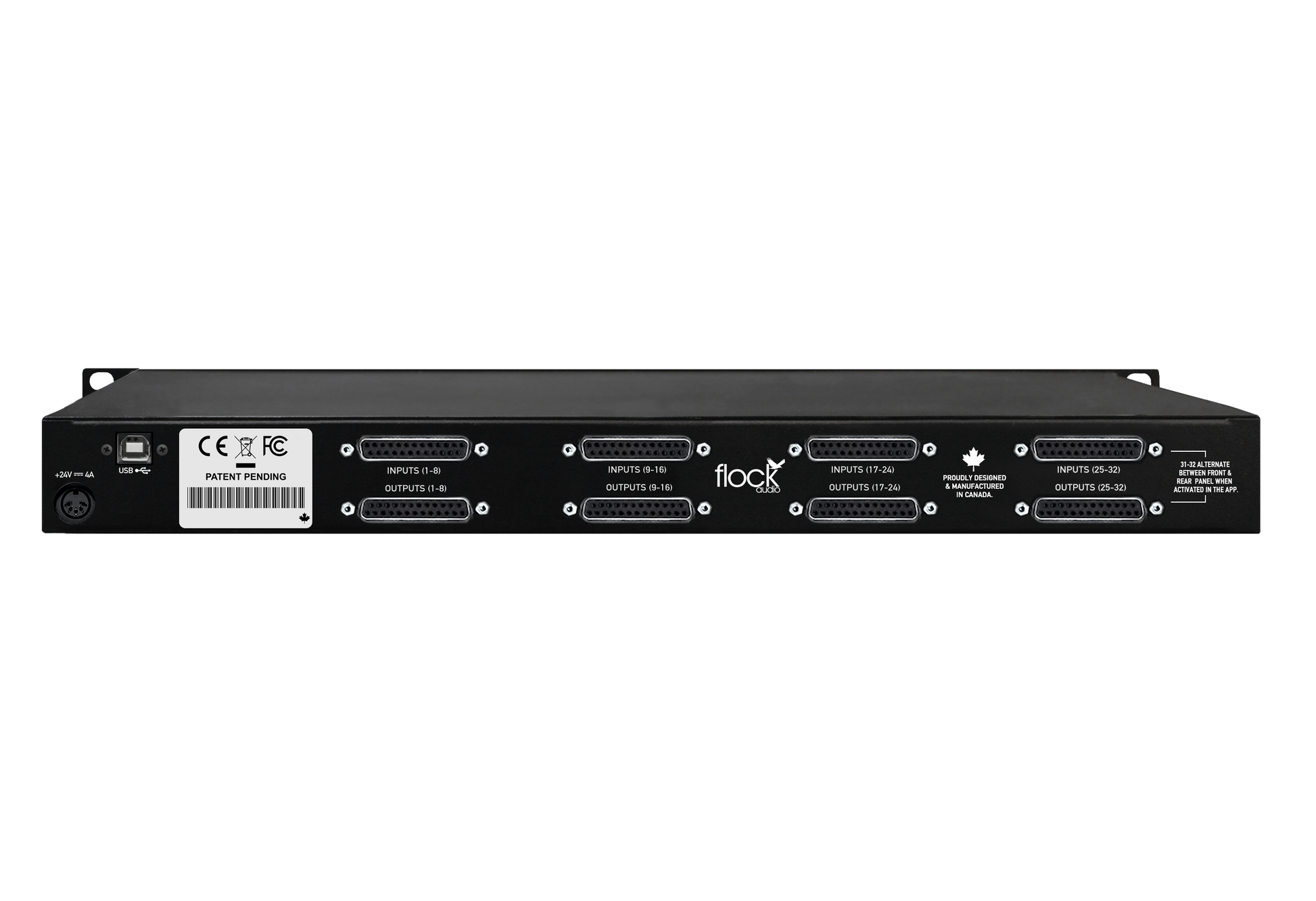

with rear-panel DB-25 connectors for the I/O and a USB to-host connector

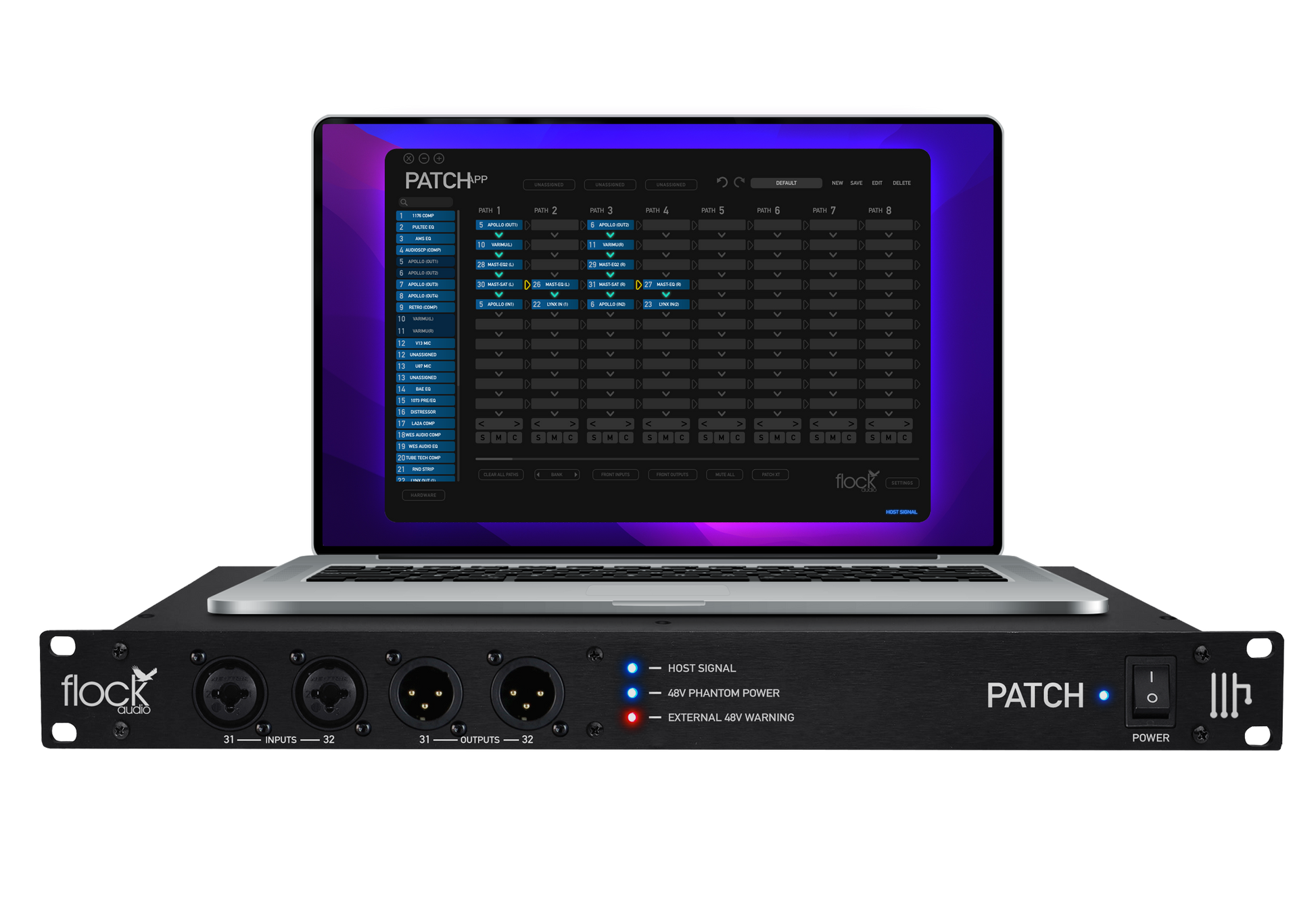

providing communication with the software part, the easy-to-use Patch
App (Mac/Win). The Patch App provides the user unlimited routing storage
and instant recalls.

Features
• 64 point connections (32 inputs / 32 outputs)
• DB-25/D-SUB Tascam standard pinout format connectors
• 32 independent channels of 48V phantom power
• Front panel - 2 combo TRS/XLR input & 2 XLR output
• PATCH APP routing software (OSX & Windows) (iOS iPad coming soon)
• Create, store & recall routings in seconds
• Create complex multing combinations with no impedance issues
• No AD / DA conversion, 100% transparent analog signal path
• Patented Flock Audio Matrix Technology
• Multiple unit expansion with any PATCH model (PATCH, LT & XT)

Videos
https://www.youtube.com/watch?v=Y-dg_fNn6DA
https://www.youtube.com/watch?v=s0PbNdqBZBQ

Tech Specs
Unit dimensions: 1RU, 4,45cm (H) x 48,3cm (L) x 20,3cm (D)
Box dimensions & shipping weight:
13cm (H) x 69cm (L) x 31cm (D),
6.5 kg

• External 5Pin 24VDC power supply, IEC cable included
• USB 2.0 (USB-A to USB-B), cable included
