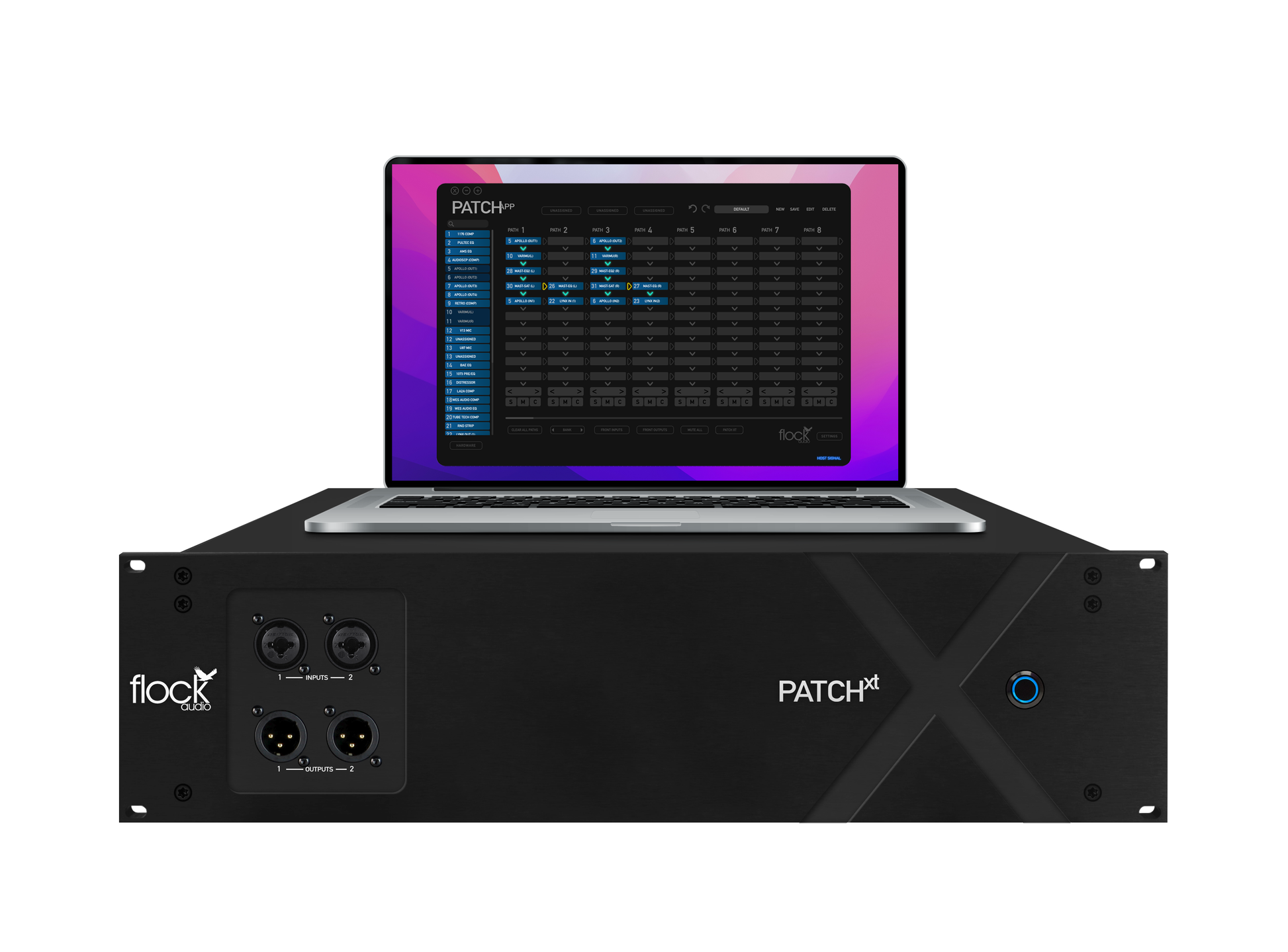

Patch XT

The Flock Audio Patch is a digitally controlled analog patchbay, designed
to achieve unprecendented flexibility and recall capabilities in equipment
chain routings. With this combination of hardware and software, patch
cables are a thing of the past!

No AD / DA converters involved, only the paths of the analog signals are
altered digitally. Patch gives you the best of both worlds – pure analog
audio combined with full digital control.

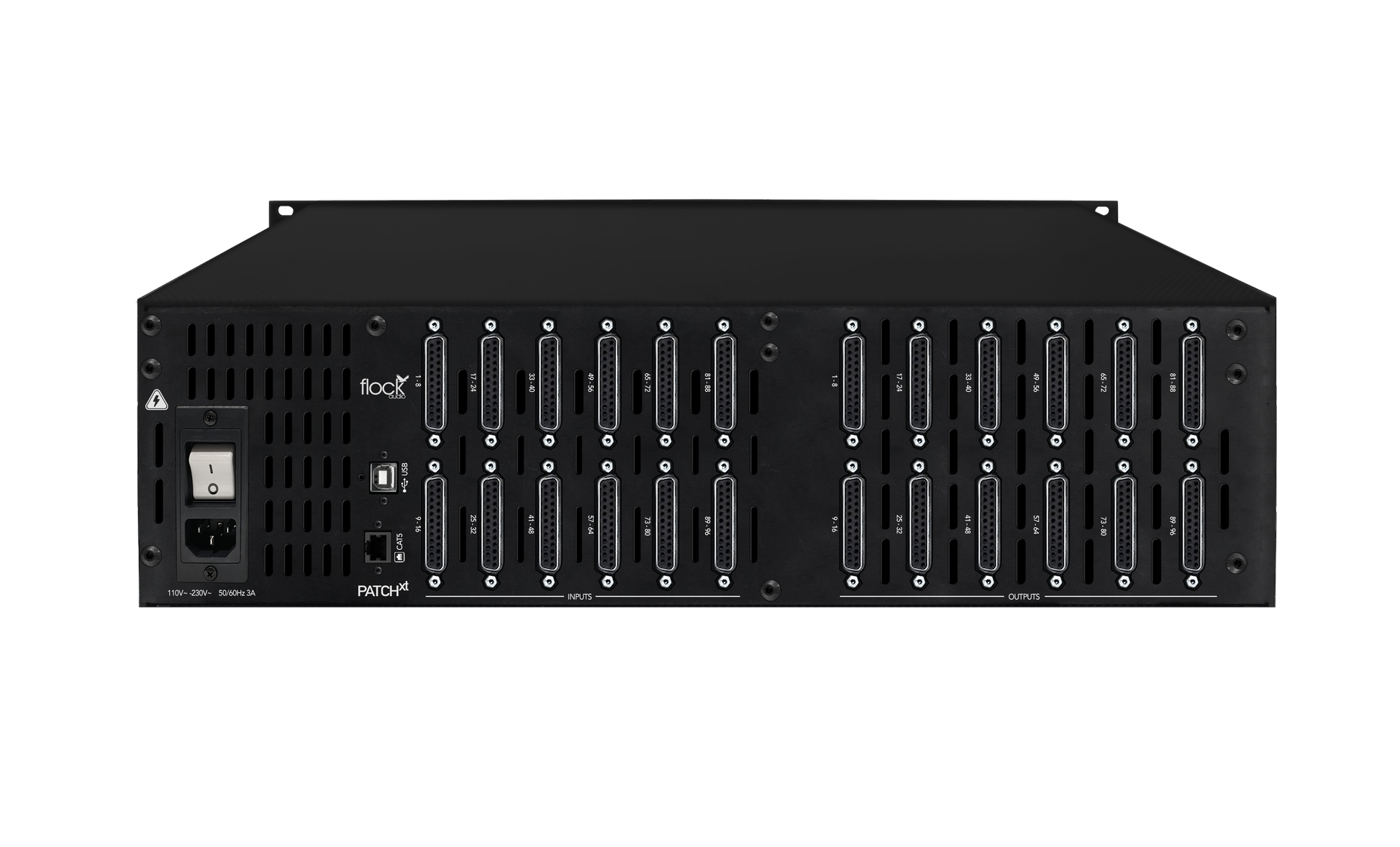

The hardware part is a 192-point analog patchbay in a sturdy 3RU chassis
with rear-panel DB-25 connectors for the I/O and a USB to-host as well as
a Ethernet connector providing communication with the software part, the
easy-to-use Patch App (Mac/Win). The Patch App provides the user
unlimited routing storage and instant recalls.

Features
• 192 Point Connections (96 Inputs / 96 Outputs)
• DB-25/D-SUB Tascam standard pinout format connectors
• 32 independent channels of 48V phantom power

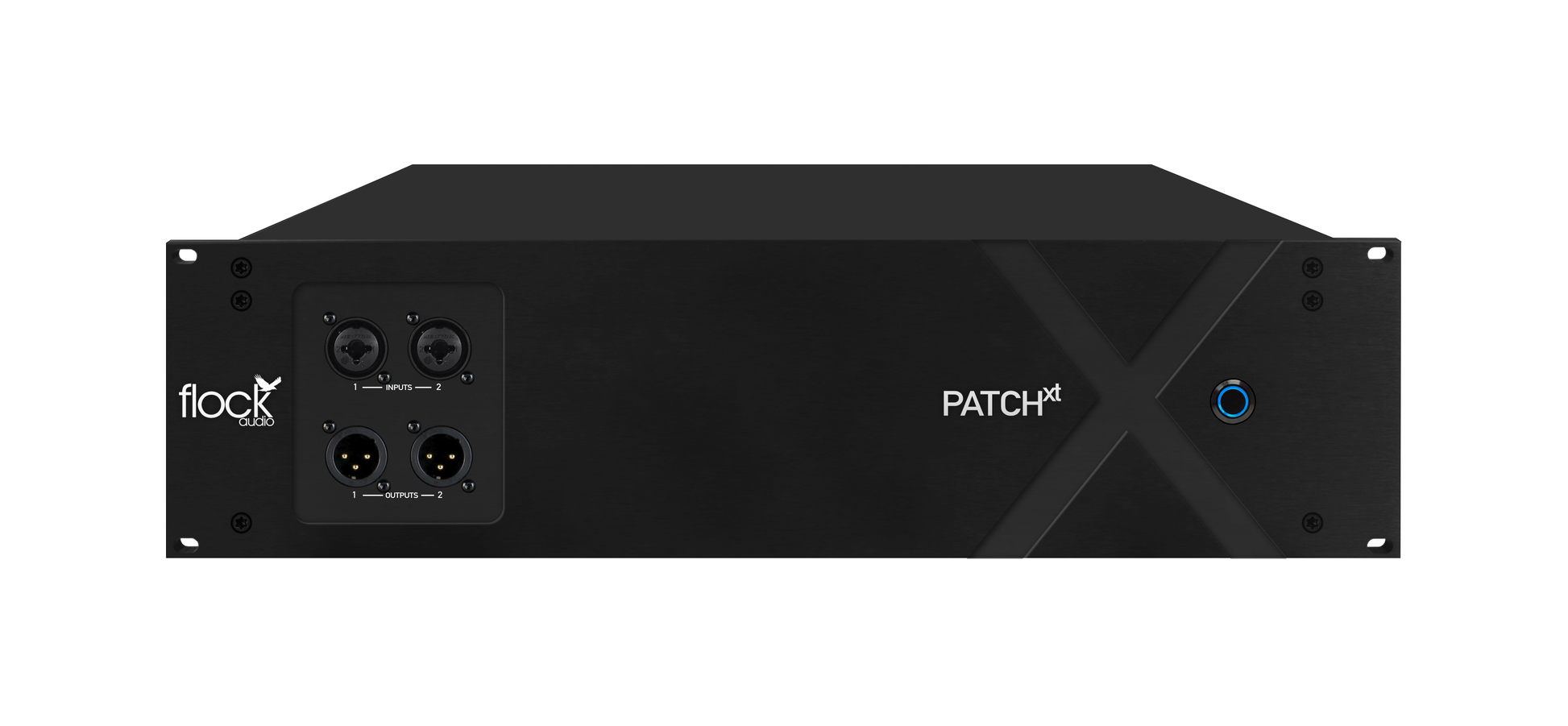

• Front panel - 2 combo TRS/XLR input & 2 XLR output
• PATCH APP routing software (OSX & Windows) (iOS iPad coming soon)
• Create, store & recall routings in seconds
• Create complex multing combinations with no impedance issues
• No AD / DA conversion, 100% transparent analog signal path
• Patented Flock Audio Matrix Technology
• Multiple unit expansion with any PATCH model (PATCH, LT & XT)
• CAT5 network (optional control) capability
• Input signal audio detection integration
• Internal power supply
• Optional rear mount cable hanger accessory (XTH)

Videos
https://www.youtube.com/watch?v=Y-dg_fNn6DA
https://www.youtube.com/watch?v=s0PbNdqBZBQ

Tech Specs
Unit dimensions: 3RU, 13,34cm (H) x 48,26cm (L) x 33cm (D)
Box dimensions & shipping weight:
26cm (H) x 59cm (L) x 46cm (D),
14 kg

• IEC cable
• USB 2.0 (USB-A to USB-B) threaded securement - cable included
